Description:

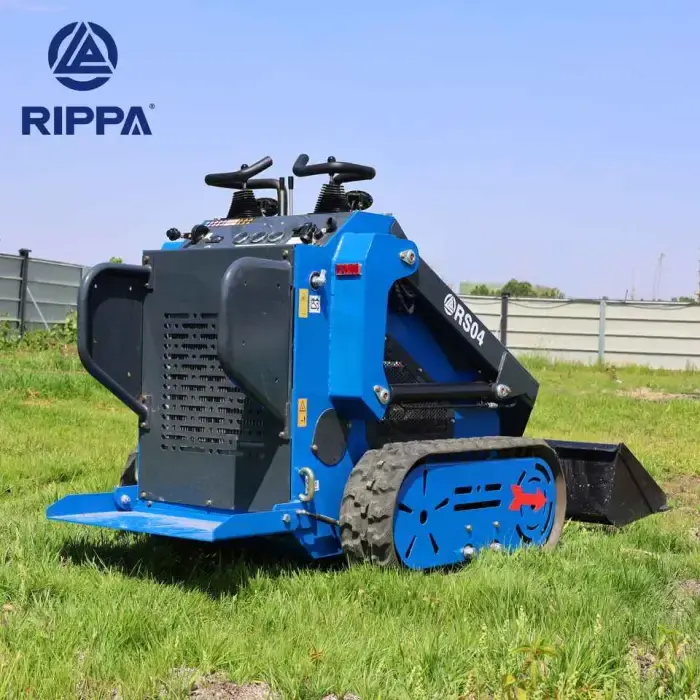

The RIPPA RS04 Skid Steer Loader is a high-performance, compact diesel-powered loader equipped with the reliable Kubota Z482 engine. Built for demanding applications, it delivers smooth power, excellent maneuverability, and easy maintenance. Its triple-gear hydraulic pump and modular track/wheel mobility system make it efficient and versatile for multiple terrains and tasks.
Specifications:
Category | Details |
Model | RS04 |
Type | Mini Skid Steer Loader (Diesel) |
Engine Brand | Kubota |
Engine Model | Z482 |
Rated Power | 11.1 HP (8.3 kW) @ 3600 rpm |
Cooling System | Water-cooled |
Fuel Type | Diesel |
Operating Weight | 1,958 lb (890 kg) |
Bucket Capacity | 5.3 ft³ (0.15 m³) |
Rated Load Capacity | 385 lb (175 kg) |
Maximum Load Mass | 880 lb (400 kg) |
Travel Speed | 0–1.55 mph (0–2.5 km/h) (low) / 0–1.86 mph (0–3.0 km/h) (high) |
Gradeability | 25% |
Ground Pressure | 3.75 psi (25.17 kPa) |
Maximum Unloading Height | 61.1 in (1553 mm) |
Maximum Loading Height | 81.9 in (2080 mm) |
Maximum Unloading Distance | 21.7 in (550 mm) |
Ground Clearance | 4.3 in (108 mm) |
Transport Dimensions (L×W×H) | 77.6 × 45.3 × 51.2 in (1970 × 1150 × 1300 mm) |
Bucket Width | 45.3 in (1150 mm) |
Hydraulic Pump Type | Gear Pump PGP64422H92 |
Hydraulic Brand | Tianjin Walk / Tengfei |
Travel Motor | Deston BM5-315 |
Drive System | Triple-gear hydraulic system (3.80 + 2.54 + 2.54 gpm) (14.4 + 9.6 + 9.6 L/min) |
Applications:
Construction: Digging, backfilling, grading, and site work.
Landscaping: Soil preparation, trenching, and debris removal.
Agriculture: Material handling, cleaning, and barn tasks.
Snow & Utility: Snow removal and property maintenance.
Attachments: Breaker, auger, fork, mixer, grabber, snowplow, and more.
